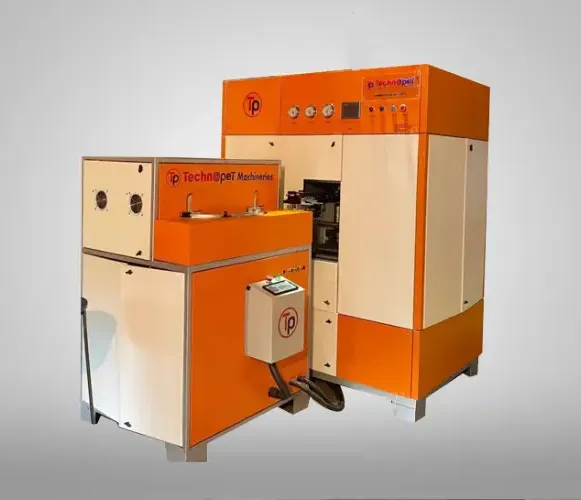

Technopet || Products || On Line PET Stretch Bottle Blowing Machine

Specifications

Product Details

Production Max Mechanical Output BPH - 2400* ВРН
Bottle Ejection system and Method of bottle Transfer to infeed bay of Filling machine - Machine pick Bottles from mould in neck up direction and transfer directly to On-Line bay of Filling Machine.
Type of Machine operation( Online/Off line) - Semi-Automatic with Online Bottle Ejection system.
Total Electrical Power sanction required to install machine - 70 HP Three phase supply
No of Bottle Cavity, Bottle Size / Volume - 2 Nos, 100 ml to 1000 ml
Bottle Neck size, Neck type - 28 mm, PCO/Three start/Short
Bottle Shape, Mould Locking System - Round, Square, Oval &CSD, Hydro-Pneumatic (HS)
Mould Opening, Mould Cavity Distance, Mould Thickness - 100 mm, 110 mm, 170 mm
LampsRating, Machine ConnectingLoad, Powerconsumption70% - 500 Watts, 16 KW, 11 Kw (15 HP)

Total Preform Holders, Max Heating Load, Motor & other Load - 16 Numbers, 15 KW 1 KW
Preform Neck Cooling System - 360 Degree, Individual preform neck auard.
IR Heating station, IR Lamps/Station - 5 Nos, 6 Nos.
High Pressure Air, Chilling Water - 25 Bar-100 CFM- (40 HP), 3 Ton-60 LPM-10 deg. C./li>
Air Drier HP, Air Filtration HP - 40 bar/120 cfm, Pre. After and Micron
Voltage Servo Stabilizer, Weight of Machine Approx - 30 KVA-3 phase-+/-1%, 2000 Kgs
Length x Width x Height - Blow - 1100 × 1650 x 2280 mm Oven - 1000 × 1100 × 1600 mm
Men power required to operate 2 Numbers machine, Preform PCD in Oven - 2 Numbers, 38 mm
